Eighteen Watt Solar Panels and Solar
Cells
18 WATT Solar Panel Kit - Everything you need
just add a car battery!
Need urgent UK Delivery
within 24 hours ? Usually no problem, and no
extra charge. For advice
on buying Solar Panels, call us 7 days a week
on UK Freephone 0800 01 88844
Our range of solar panels use the latest
in cutting edge technology allowing you to capture the sun’s
energy and convert this solar power it into electrical current
to power a range of appliances. Our panels use crystalline
silicon technology which is more efficient than amorphous
or thin film solutions, particularly in lower light conditions
found in the UK. All our solar panels are accredited with
the internationally recognised IEC 61215 certification.
Our solar panels extend from 5 through to 150 watts in power.
Choosing the correct size of panel will depend on variables
such as the power required by the appliances you require
to power, length of use and hourly sunshine rates. All panels
over 18 watts will require a voltage regulator. Please refer
to our accessory table to ensure you have the correct equiptment
to operate your chosen solar panel.
|
our
price
£ 179.00
Buy Now! |
enlarge

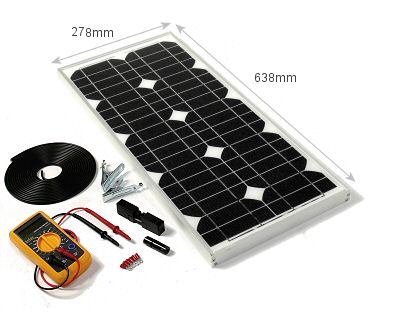

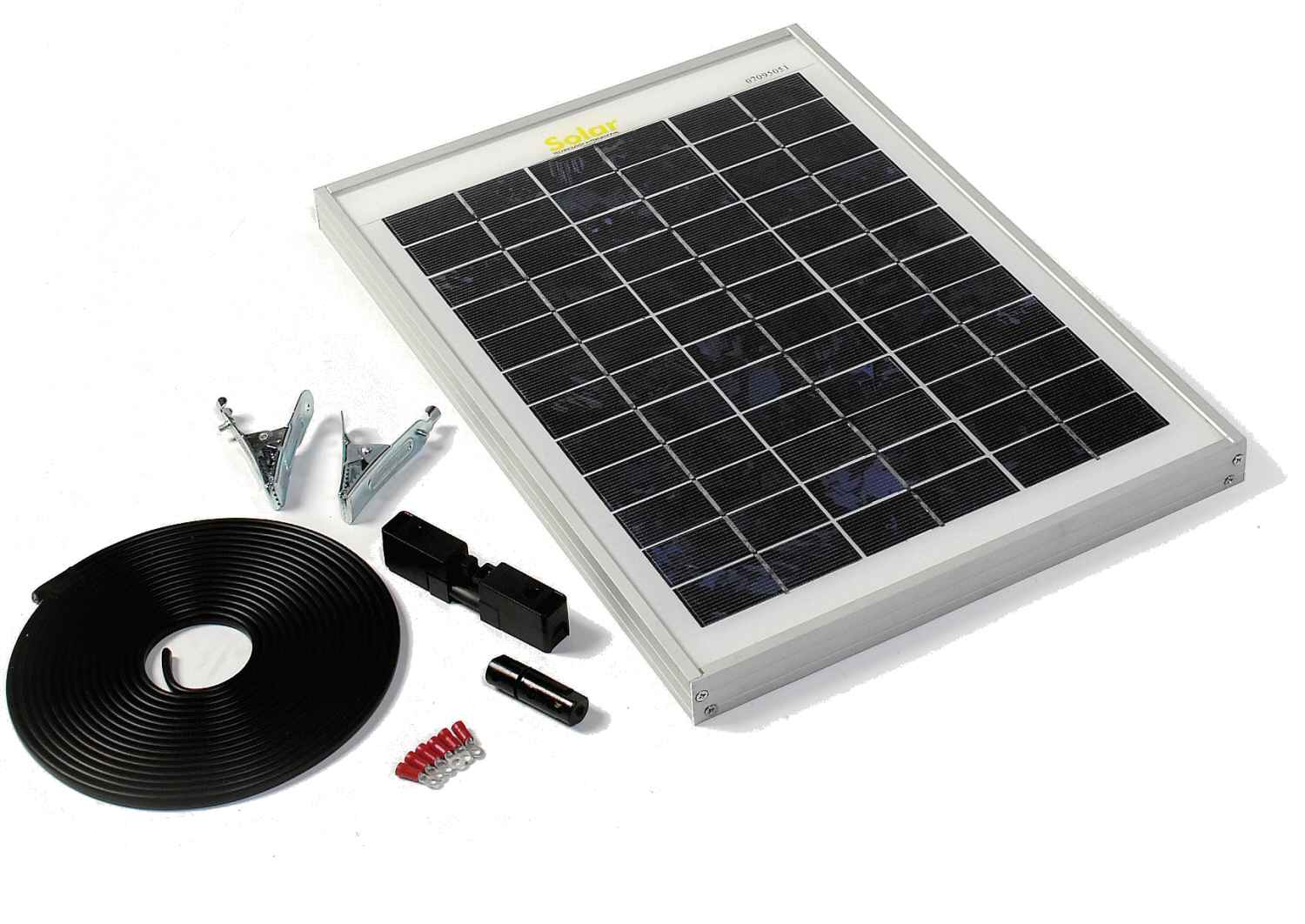

image 18 WATT Solar Panel
Ideal for charging
consumer appliances such as mobile phones, electric toothbrushes,
digital cameras etc. The 18 watt panel provides a continuous
trickle feed maintaining and extending the life of any
12 volt battery. The 18 watt solar panel is supplied with
a 4 amp charge controller, all the necessary cable (5m),
connectors and detailed installation instructions. A solar
panel carry bag is available. This is a great addition
where your panel will be used in temporary locations -
e.g. where used with a touring caravan. Made from hard
wearing shower resistant Cordura, the carry bag offers
tough custom built protection for your solar panel. A
universal stand is also available. It quickly and easily
fits to the panels enabling them to be used “free standing”,
angled to suit the time of day/year and conditions.
- High efficiency crystalline cell for "all weather" charging
- Perfect for 12V appliances such as TV’s or for maintaining
a 12V caravan battery over a weekly period. Also suited
to larger projects such as powering electric gates
or garden pumps / fountains with the additional purchase
of an invertor (not supplied).
- Water resistant, robust construction for outdoor use
- In built diode protects against battery discharge
- 20 year cell warranty and 10 year module warranty
- Practical Carry bag and cable kit included
Technical Specifications
Power: 18 watts
Peak Output: 1.21A @ 16.8V
Approximate watt-hours per day*: 126
Approximate amp-hours per day*: 8.47
Dimensions: 638 x 278 x 25mm
Weight: 2.2kg
* Based on 7 hours of average daily peak sunlight hours
Example Uses
Caravan 12V Battery Operation
Charging 240V Shaver/Camera
Pond/Fountain Pump
Module Profile: The module is designed in accordance with IEC61215:1993 standards, manufactured with proven materials and tested to ensure electrical performance and service life.
SiN film deposited on the front surface by PECVD acts as anti reflection coating and gives a uniform dark blue appearance.
Cells are laminated between high transmissivity low- iron 3mm tempered glass and sheet of TPT material by two sheets of EVA to prevent moisture penetrating into the module.
Heavy duty anodized aluminium frame provides high wind resistance and convenient mounting access.
Multi-Contact waterproof versatile junction box and terminals allows for quick and simple connection.
The supplied cable, designed for photo voltaic uses, guarantees that each module has excellent power transmission throughout the year.
|
- Convert this solar power it into electrical current to power a range of appliances
- Crystalline silicon technology which is more efficient than amorphous or thin film solutions
- Accredited with the internationally recognised IEC
61215 certification
- Satisfaction
guaranteed!*
*
All Solar panels come with a 10 year guarantee and a 20 year performance guarantee on the cells
carry bag
(included)
voltage regulator
(required when using this panel)
inverter
panel
stand
(optional)
full
range
|
|
Solar
Energy is a tried and tested power source that is
already being used around the world for numerous commercial,
industrial, government and domestic applications. It is
powering water pumps in African villages, weather stations
in the Antarctic and satellites in space! It works by
transforming the energy from the sun into a reusable form
of electricity, a process known as Photovoltaic (or PV
for short). Your Solar panel acts as a collecting tray,
helping you catch the sun’s rays. The bigger the panel,
the more energy you can collect. The energy collected
is stored for your future use in a battery. Sometimes
you collect more energy than you actually need so with
larger panels a voltage regulator should be fitted to
control the flow of energy and prevent battery damage. It would be hard to find
a more environmentally friendly power supply. Clean and
green, solar power is a renewable, sustainable and non-polluting
source of energy. It is easy to see the appeal of solar
power for domestic use. Low maintenance and long lasting,
it is a highly cost-effective and reliable energy supply.
All Solar panels come with a 10 year guarantee.
Solar Panels There are several different methods
of harnessing the sun’s energy with Solar panels. Our
panels are based on the finest crystalline silicon technology,
which is more efficient than amorphous or other thin film
technologies, particularly in low light conditions. This
makes it the best choice for our cloudier climate! While
the UK does not experience extreme weather very often,
our panels are specially designed for use in harsh environmental
conditions so you will never need to worry about storm
damage. The individual solar cells are laminated onto
a multi-layer back sheet to protect against moisture ingress
and ensure UV stability and electrical insulation. The
cell base is encapsulated onto strengthened water white
low iron tempered glass and mounted into a corrosion-resistant,
heavy-duty anodised aluminium frame for stability.
|
